SatLink WS6902 DVB-S Satellite Meter With Spectrum Analyzer

Digital LCD Satellite Finder Meter DVB-S With Spectrum Analyzer WS-6902

WS-6902 Professional Meter Version Includes A Digital Satellite Spectrum Analyzer Plus Wach All FTA Satellite Channels On Colour LCD Screen

First Time Available On Any Low Priced Satellite Meter That You Are Able To:
* View the actual channel on the screen of the meter.
* Quickly and accurately align the satellite dish and instantly check the stability of the channel right on the screen of the meter.
* Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
* There is never a need to send your meter in for a upgrade.
* The meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.

SPECIAL FEATURES INCLUDE:

* View And Adjust Satellites With The Built In Spectrum Analyzer
* View All The Actual FTA Satellite Channels On The Meters Screen.
* Auto Re-Calibration Due To The Unique Calibration System Built in to the Meter.
* Automaticlly Calculates Dish Angles And Settings Based On Your Longditude And Latitude.
* Calculates Your Dish Angles And Alignment Settings so you can quickly and accurately align the satellite dish and you can instantly check the stability of the channel right on the screen of the meter.
* Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
* All Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user.
* View All FTA Satellite Channels On Screen With Sound.

OTHER FEATURES INCLUDE:

* 3.5 Inch High definition TFT LCD Screen which Can show live Channels
* NEC Solution
* Shows both S/N and C/N
* Shows strength and quality readings
* Sound and Light Alarm When Lock Signal
* Shows channel picture
* Show numerical reading and bar reading
* Digital Meter for Signal Strength(in numerical & #118alue and picture)
* Easy Satellite Manager ( EDIT, delete and SCAN)
* Edit TP, Frequency, LNB switch, Symbol Rate etc.
* Completely programmable by the user

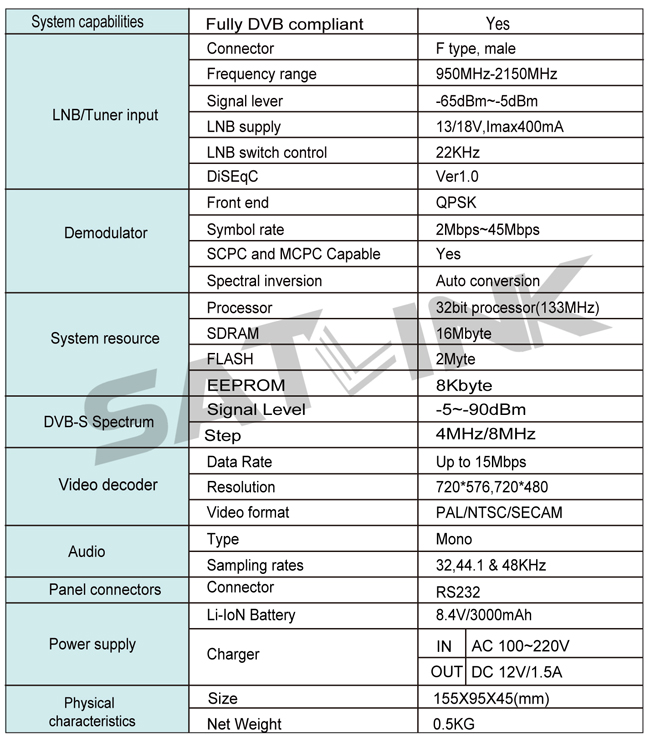

* Input Frequency 950-2150MHz
* Input Level -65-25dBm
* Input Impedance 75(ohm)
* Auto Calculate Angle of AZ ,EL
* Upgrade S/W by PC
* Easy to carry, size only 9.5cm X 15.5cm X 4.5cm
* DisEqC Control
* 22KHz Control
* Fast Charge LI-ION Battery(1950mAh), Can Last 4 Hours
* Indicator Lights for 13/18 volts
* Indicator lights for 22 KHz
* USB port for software upgrades

Items Included:
* Sat-Link Meter WS6902 With Battery
* USB Software Upgrade Cable
* Neck Strap
* Carrying case
* 12VDC Power Charger
* Two Pin 12VAC Mains Power Charger
