SatLink WS6939 DVB-S & T Combo Satellite & Aerial Meter

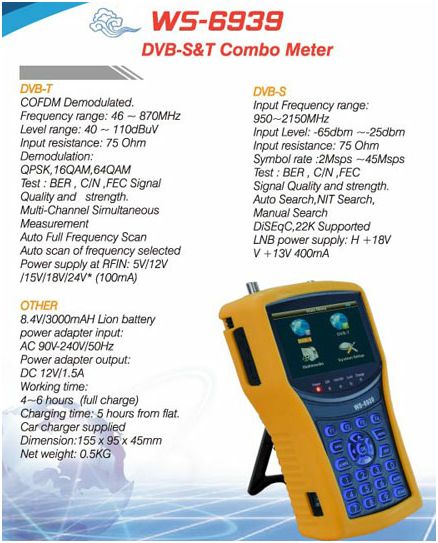

WS6939 Specs Sheet
SatLink WS6939 DVB-S & T Combo Satellite & Aerial Meter 4.3 Inch Screen
Sat-Link WS6939 Combo Satellite And Terrestrial Meter DVB-S & DVB-T (No Spectrum)
Satellite Finder Sat-Link WS-6939 DVB-S + DVB-T Combo Meter
8 menu languages: English, German, French, Portuguese, Spanish, Italian, Czech, Greek
*4.3 Inch High Definition TFT LCD Screen
*Both AV IN And AV Out
*8.4V/3000mAh Lion Battery Included
*Max Operating Time:4 hours
*12V/1.5A DC Adapter
*Sound and Light Alarm for Locking Signal
*USB Port For Software Upgrades
*Speaker Integrated
DVB-S
*Input Frequency 950~2150MHz
*Input Level -65~ -25dBm
*Input Impedance 75O
*Support DISEQC 1.0,1.1,1.2 and 22khz Tone
Measurement Type: signal strength,quality;
BER; S/N;PWR
Search Mode: Auto,Blind,Manual
*LNB Power Supply:18/13V(IMax 400mA)
DVB-T
*Frequency Range: 46MHz-862MHz
*Level range:40dBµV-110dBµV
*Input Impedance:75O
*Multichannel check
*Demodulation:QPSK,16QAM,64QAM
Measurement Type: signal strength,quality;
MER; S/N;PWR
*Search Mode: Auto,Manual
*ANT Power Supply:5V/12V/24V
Specification
system capabilities
fully DVB-S & DVB-T complaint
Yes
Antenna input
DVB-S
connector
F type,Female
Frequency range
950MHZ--2150MHZ
signal level
(-)65dBM--(-)25dBM
LNB power
13/18V, Max 350mA
LNB switch control
22KHZ
DiSEQC
Ver 1.0/1.2
DVB-T
connector
IEC female 9.5mm
frequency range
VHF and UHF
band with
8/7/6MHZ
input impedance
75ohm
Demodulator
DVB-S
front end
QPSK
demodulation range
2Mbps--45 Mbps
SCPC and MCPC capable
Yes
DVB-T
modulation
COFDM
QPSK , 16QAM, 64QAM
transmission mode
2K, 8K
Guard interval
1/2, 1/4, 1/8, 1/16, 1/32
FEC
1/2,2/3,3/4,4/5, 5/6,6/7,7/8
system resources
processor
32 bit processor(133MHZ)
Flash
8Mbyte
SDRAM
4*16 Mbyte
Video decoder
MPEG2
MP@ML
data rate
Max 15 Mbit/s
resolution
720*576, 720*480
video format
PAL/NTSC/SECAM
Audio
MPEG
MPEG-1&2
type
single
sampling rate
32,44.1 &48HKZ
Data transfer
connector
USB
power supply
li-ion battery
3000MAH/8.4V Max
power adapter
in AC100-220V
out DC 12V
physical characteristic
size
12.3x21.2x4.5(cm)
Net weight
0.56kg
